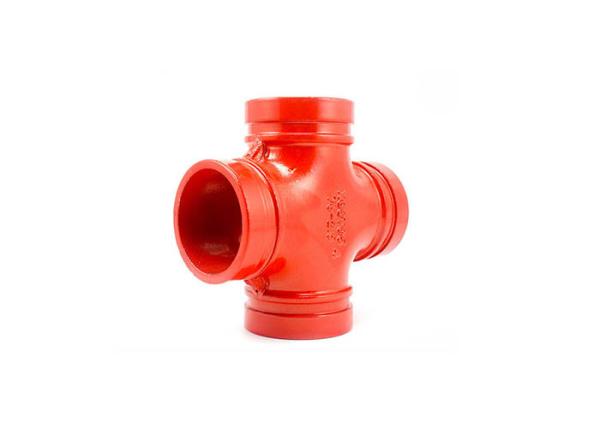

cast iron threaded fitting ul fm ductile Iron grooved cross pipe fitting
Key Points of grooved cross pipe fitting
1) Material: ductile cast iron ASTM-A536
2) Reducing installation costs
3) Flexibility and rigidity
4) Joint reliability
5) Isolate noise and vibration
6) Convenient joint
7) We have pressure testing machine to test the quality
8) Smooth mouth without burr
9) Wall thickness uniformity
Our advantages:
1. Globally acceptabe quality: The products offered by us are thoroughly examined by
our experienced professionals to ensure their durability, reliability and long service life.
2. Competitive price: direct manufacturer, reducing all unnecessary cost for you.
3. Professional team:20 years foreign customers service experience. Over 10 years investment
casting manufacture. Almost 35% high educated people.
4. Good service: Customer is first
From cable protection, water supply, fire protection and mine industry ,
leyon casting grooved products are designed to withstand the most rugged applications
while providing durable and easy installation, and ultimately,
saving time and money on any project requiring grooved pipe fittings
Size of grooved cross pipe fitting
Nominal
Size
mm/in | Pipe
O.D.
mm/in | Working
Pressure
PSI/Mpa | Dimensions
L
mm/in | Certificate |
65
21/2 | 76.1
3.000 | 362.5
2.5 | 76.25
3 | 3C UL FM |
80
3 | 88.9
3.500 | 362.5
2.5 | 82.5
3.248 | 3C UL FM |
100
4 | 114.3
4.5 | 362.5
2.5 | 92.5
3.642 | 3C UL FM |
125
5 | 139.7
5.250 | 362.5
2.5 | 110
4.33 | 3C UL FM |
150
6 | 165.1
6.500 | 362.5
2.5 | 122.5
4.883 | 3C UL FM |
200
8 | 219.1
8.625 | 362.5
2.5 | 164
6.457 | 3C UL FM |
Details of grooved cross pipe fitting
| Material | Ductile lron |
| Standard | ASTM A536 Gr.65—45—12 EN1563.JIS G5502 |
| Physical property | Tensile strength>=310Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Surface | painted |
| Color | red, blue, white |
| Model | Ductile iron grooved pipe fittings (Rigid coupling,45°elbows,grooved pipe fitting 90°elbows,reducing tee,grooved cross,flange coupling,cap ect.) |
| Connection | Female, welding, flange |
| Shape | Equal, reducing |
| Certificate | FM,UL BSI,ANSI,ISO9001, 3C |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available |
| Package | Cartons without pallet |
| Cartons with pallet |
| Double woven bags |
| Or as buyer’s requirements |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
