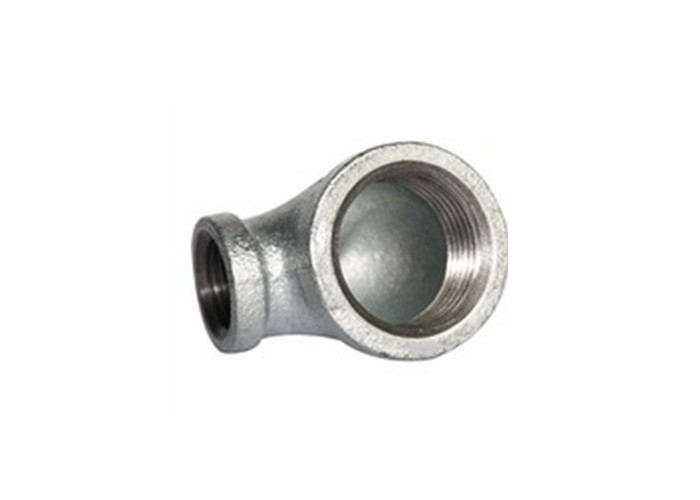

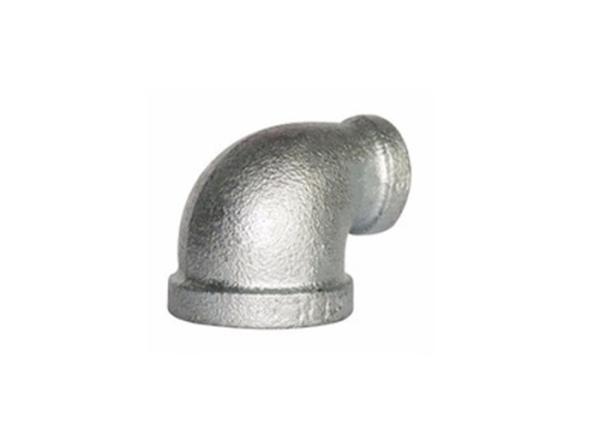

Resuable DIN Standard Malleable Iron Elbow NPT Threaded Plumbing Fittings

  • 1
  • 2
  • 3

Brand Name : leyon

Model Number : 90 Degree Pipe Elbow Dimensions

Certification : FM/UL

Place of Origin : China

MOQ : 100piece

Price : Negotiable

Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P

Supply Ability : 10000piece/week

Delivery Time : 25-35days

Packaging Details : 200piece/carton

head shape : round

Specification : Elbow, socket, Tee, Union, Bushing, Plug

Usage : Oil Gas Water Industrial

OEM : 90 Degree Pipe Elbow Dimensions

thread : NPT

certificate : BSI, ISO9001,FM,UL

Testing pressure : 2.5Mpa

Contact Now

Angular deviations :

National standards allow for a range of angular deviations, but this deviation is within the range of plus or minus 0.5 °.

Size standard :

Our products are fit to the nationalstandard .

Weight standard:

Until now , there is no weight standard to the pipe fitting .

The usage of malleable cast iron pipe fitting

  • Fire pipe installation
  • Gas pipeline installation
  • Central air conditioning pipeline installation
  • Other machinery and equipment installation

We also have lined with plastic fittings and coated pipe fittings, these two fittings are mainly used for water supply piping system installation.

The Attribute definition list of 90 Degree Pipe Elbow Dimensions

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2
mm 6 8 10 15 20 25 32 40
Dim.
(mm)		 A 19 21 25 28 33 38 45 50
Size Inch 2 21/2 3 4 5 6
mm 50 65 80 100 125 150
Dim.
(mm)		 A 50 69 78 96 115 1301

Size Inch 3/8X1/4 1/2x1/4 1/2x3/8 3/4x3/8 3/4x1/2
mm 10X8 15X8 15X10 20X10 20X15
Dim.
(mm)		 A 23 26 26 28 30
B 23 26 26 28 31
Size Inch 1x1/2 1x3/4 11/4x1/2 11/4x3/4 11/4x1
mm 25X15 25X20 32X15 32X20 32x25
Dim.
(mm)		 A 32 35 34 36 40
B 34 36 38 41 42

Size Inch 11/2X1/2 11/2x3/4 11/2x1 11/2x11/4 2x1/2
mm 40X15 15X8 40X25 40X32 50X15
Dim.
(mm)		 A 36 39 42 46 38
B 42 44 46 28 48
Size Inch 2x3/4 2x1 2x11/4 2x11/2 21/2x1
mm 50X20 50X25 50X32 50X40 65x25
Dim.
(mm)		 A 40 44 56 52 56
B 50 52 58 55 63

Size Inch 21/2X11/2 3x21/2 21/2x2 3x11/2
mm 65X40 80X65 65X50 80X40
Dim.
(mm)		 A 64 82 61 58
B 69 85 66 72
Size Inch 3x2 4x21/2 4X3
mm 80X50 100X65 100X80
Dim.
(mm)		 A 73 78 84
B 78 90 92

Resuable DIN Standard Malleable Iron Elbow NPT Threaded Plumbing Fittings
