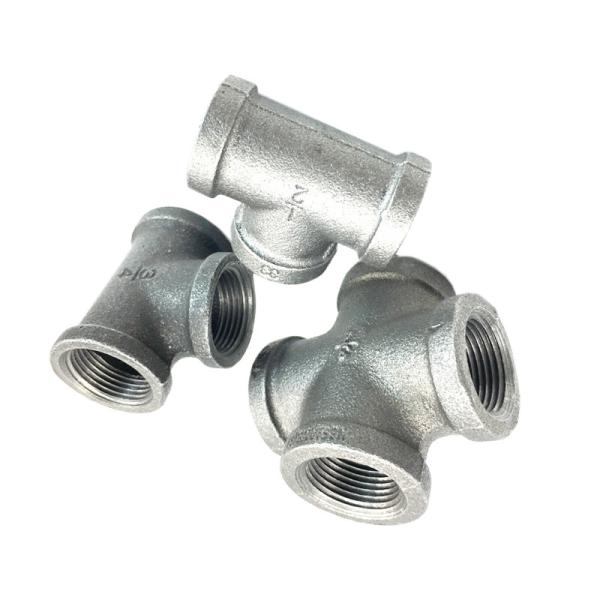

DIN 2950 Malleable Iron Pipe Fittings Threaded Pipe 4 Way Cross Tee

Product Categories

Leyon steel Co., Ltd

Contact Now

Name: DIN 2950 Malleable Iron Pipe Fittings Threaded Pipe 4 Way Cross Tee
Brand: leyon
Price: 1 USD

Brand Name : leyon

Model Number : Hot Galvanized Malleable Fittings tee and cross

Certification : FM/UL

Place of Origin : China

MOQ : 500piece

Price : Negotiable

Payment Terms : Western Union, L/C, T/T, D/P, D/A, MoneyGram

Supply Ability : 10000piece/week

Delivery Time : 25-35days

Packaging Details : 200piece/carton

Specification : Elbow, socket, Tee, Union, Bushing, Plug

Item : 1/8 inch Hot Galvanized Malleable Fittings Tees

Application : Steam, air, gas and oil pipes

Technics : sophisticated metallurgical

technology : advanced metallurgical and processing

Treaded : ISO7/1, DIN2999,NPT

Size : 1/8 inch to 6 inch

Dimensions : 19 mm

Contact Now

4 Way Pipe Fitting Malleable Iron Black Cross Female Tube Threaded Pipe for DIY Furniture Projects

Material	Malleable iron
Standard	Thread: ISO 7/1
Dimension	ISO 49, DIN 2950,EN10242
Chemical property	(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property	Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure	2.5Mpa
Working pressure	1.6Mpa
Type	Beaded with ribs or banded with ribs
	Beaded without ribs or banded without ribs
	Round/square
Surface	Galvanized/ no galvanized
Color	White/black
Model	Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection	Male, Female
Shape	Equal, Reducing
Certificate	BSI,ANAB,ISO9001,FM,UL
Application	Suitable for pipe connect of steam, air, gas, oil and so on
Application	Buyer’s drawings or designs are available
Package	Cartons without pallet
	Cartons with pallet
	Double woven bags
	Or as buyer’s requirements
Delivery details	According to the quantities and specifications of each order
Delivery details	Normal delivery time is from 30 to 45 days after receiving the deposit

Description:

Black iron fittings are constructed of made-to-last malleable iron,Carbon and Silicon, with high strength, good toughness, plasticity and machinability.

Application: cast iron fitting is a great choice for all your DIY needs, for vintage furniture, DIY project and shelf hanging decoration applications in your home.

We‘ve partnered with world class steel factories rest assured you are getting top quality products. Pipe fitting of high quality close bite and will not get loose after long time use.

After-Sale Service: If you have any questions, please feel free to contact us, we will reply you asap to help you solve problems.We provide 100% refund guarantee.

Do not hesitate to contact us!
