Threaded Reducing Socket 8" Malleable Iron Pipe Fittings

Product Categories
Leyon steel Co., Ltd
Contact Now

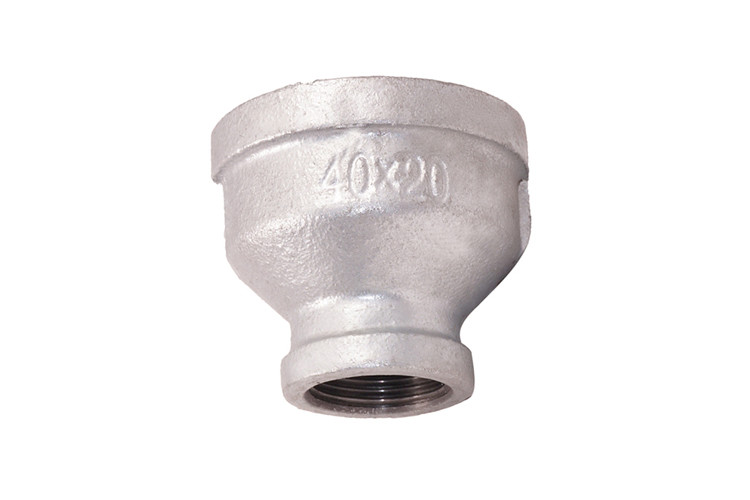

Threaded Reducing Socket 8" Malleable Iron Pipe Fittings

  • 1
  • 2

Brand Name : leyon

Model Number : 90/130/180/220/240

Certification : FM/UL

Place of Origin : China

MOQ : 100piece

Price : Negotiable

Payment Terms : Western Union, L/C, T/T, MoneyGram

Supply Ability : 10000piece/week

Delivery Time : 25-35days

Packaging Details : 200piece/carton

Product Name : galvanized malleable iron reducing socket

Standard : ANSI,BS,DIN

Package : standard exporting box

Size : 1/8~ 4 inch

Certificate : BSI,ANAB,ISO9001

Color : white/balck

Material : malleable iron

MOQ : 100pcs

Applications : Steam, air, gas and oil pipes

Contact Now

threaded cast iron pipe fittings galvanized plumbing fittings Malleable Iron Pipe Fittings

LEYON'S information:

Leyon company is one of professional manufacturers and exporters of pipe fittings in China.

We are the well-know manufacturer in the fitting industry with the most compete range of products, supplying malleable iron fittings, grooved fittings, valves, cast iron fittings, ductile iron fittings, steel pipe nipplesand couplings, stainless steel pipe fittings,ect.

Technic date of malleable iron pipe fitting :

· Material: malleable iron

· Technics: casing

· Type: Malleable Iron Tee

· Connection:male&female

· Head Shape: Equal

· size:1/8"-8"

· Standard: ANSI, BS, DIN

· Packing: wooden cases or as customers' demands

· surfacetreatment:painting galvaized or as customers' demands

Product details of malleale iron pipe fittings

  1. Good toughness and long using life.
  2. Smooth surface without any sand hole.
  3. The layer of zinc exceeds the standard of ASME, EN, and BS, DIN and so on .
  4. In order to ensure the quality of socket, we introduced the full automatic produce-lines from DISA Denmark, DJ and SINTOKOGIO Japan.
  5. The spectrometer of Oxford Instruments has applied to test the quality of socket .

  6. We rely on higher heating value gas annealing furnace to import the physical characteristics of galvanized iron extension socket.

  7. Thread diameter, parallelism, angle, tooth type, every part on thread will be regulated strictly .even each galvanized iron extension socket must be sorted by plug gauge.

The Attribute definition list

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2
mm 6 8 10 15 20 25 32 40
Dim.
(mm)		 A 19 21 25 28 33 38 45 50
Size Inch 2 21/2 3 4 5 6 　
mm 50 65 80 100 125 150 　
Dim.
(mm)		 A 50 69 78 96 115 1301 　

Size Inch 3/8X1/4 1/2x1/4 1/2x3/8 3/4x3/8 3/4x1/2
mm 10X8 15X8 15X10 20X10 20X15
Dim.
(mm)		 A 23 26 26 28 30
B 23 26 26 28 31
Size Inch 1x1/2 1x3/4 11/4x1/2 11/4x3/4 11/4x1
mm 25X15 25X20 32X15 32X20 32x25
Dim.
(mm)		 A 32 35 34 36 40
B 34 36 38 41 42

Size Inch 11/2X1/2 11/2x3/4 11/2x1 11/2x11/4 2x1/2
mm 40X15 15X8 40X25 40X32 50X15
Dim.
(mm)		 A 36 39 42 46 38
B 42 44 46 28 48
Size Inch 2x3/4 2x1 2x11/4 2x11/2 21/2x1
mm 50X20 50X25 50X32 50X40 65x25
Dim.
(mm)		 A 40 44 56 52 56
B 50 52 58 55 63

Size Inch 21/2X11/2 3x21/2 21/2x2 3x11/2
mm 65X40 80X65 65X50 80X40
Dim.
(mm)		 A 64 82 61 58
B 69 85 66 72
Size Inch 3x2 4x21/2 4X3
mm 80X50 100X65 100X80
Dim.
(mm)		 A 73 78 84
B 78 90 92

Threaded Reducing Socket 8" Malleable Iron Pipe FittingsThreaded Reducing Socket 8" Malleable Iron Pipe Fittings
