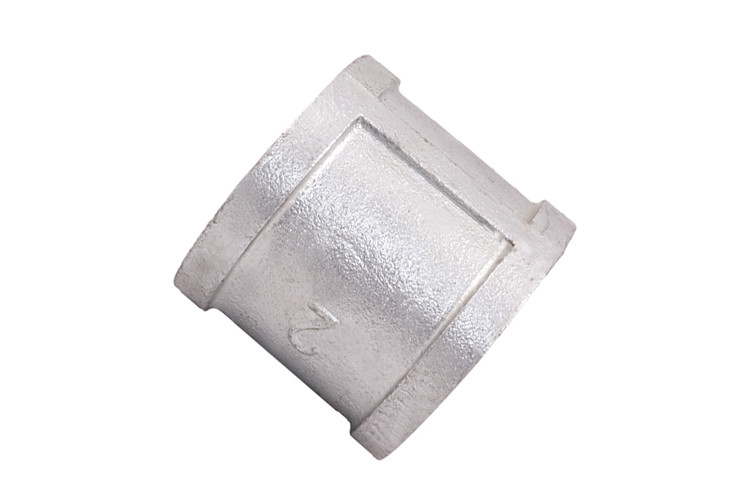

Npt Gas Pipe Hose Pipe Fittings Malleable Iron Socket White / Balck Color

Brand Name : leyon

Model Number : 92/90/180/220/240

Certification : FM/UL

Place of Origin : China

MOQ : 100piece

Price : Negotiable

Payment Terms : Western Union, L/C, T/T, MoneyGram

Supply Ability : 10000piece/week

Delivery Time : 25-35days

Packaging Details : 200piece/carton

Product Names : gi malleable iron socket

Standard : ANSI,BS,DIN

Sizes : 3/8~ 4 inch

Material : MI

Head Code : Square

Certificates : BSI,ANAB,ISO9001

Package : standard exporting box

Color : white/balck

Applications : Steam, air, gas and oil pipes

Contact Now

npt pipe fittings 1/2 inch 1 inch galvanized malleable iron pipe fittings

Leyon piping system co.,ltd ,who specialized in piping fittings more than 24 years,and built long term cooperation with more than 90 countries customers,our products main applications are : plumbing,water supplying for drinking water and fire fighting etc.

Our Production Processing for malleable pipe fittings

  • We buy and use dense ,high strength ,nonporous iron and steel scrap

  • as raw material .Because that is basic point on excellent malleable pipe fittings

  • Thread processed is exactly based on ASME EN BS DIN standard requirements,

  • so that make every thread of malleable pipe fittings can be matched easily.

  • Pipe fittings size of malleable pipe fittings from 1/8 "to 8".

  • Favorable tenacity,long service life for malleable pipe fittings

  • Smooth surface without any sand hole on malleable pipe fittings

  • zinc coating’s average thickness of malleable pipe fittings

  • is higher than 86 um, which is specified in ASME, EN(70um), DIN(70um) and SI(78um).

The Attribute definition list

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2
mm 6 8 10 15 20 25 32 40
Dim.
(mm)		 A 19 21 25 28 33 38 45 50
Size Inch 2 21/2 3 4 5 6 　
mm 50 65 80 100 125 150 　
Dim.
(mm)		 A 50 69 78 96 115 1301 　

Size Inch 3/8X1/4 1/2x1/4 1/2x3/8 3/4x3/8 3/4x1/2
mm 10X8 15X8 15X10 20X10 20X15
Dim.
(mm)		 A 23 26 26 28 30
B 23 26 26 28 31
Size Inch 1x1/2 1x3/4 11/4x1/2 11/4x3/4 11/4x1
mm 25X15 25X20 32X15 32X20 32x25
Dim.
(mm)		 A 32 35 34 36 40
B 34 36 38 41 42

Size Inch 11/2X1/2 11/2x3/4 11/2x1 11/2x11/4 2x1/2
mm 40X15 15X8 40X25 40X32 50X15
Dim.
(mm)		 A 36 39 42 46 38
B 42 44 46 28 48
Size Inch 2x3/4 2x1 2x11/4 2x11/2 21/2x1
mm 50X20 50X25 50X32 50X40 65x25
Dim.
(mm)		 A 40 44 56 52 56
B 50 52 58 55 63

Size Inch 21/2X11/2 3x21/2 21/2x2 3x11/2
mm 65X40 80X65 65X50 80X40
Dim.
(mm)		 A 64 82 61 58
B 69 85 66 72
Size Inch 3x2 4x21/2 4X3
mm 80X50 100X65 100X80
Dim.
(mm)		 A 73 78 84
B 78 90 92

Quick Details


Material: iron
Technics: Casting
Type: galvanized cast iron pipe fittings

  • Connection: Female
  • Shape: Equal
  • Usage: Jointing Pipe Lines
  • Thread: ISO 7/1
  • Standard: ANSI,BS,DIN,EN
  • Surface treatment: Hot Dipped Galvanized
  • Size: 1/8"~4"
  • ​Type: galvanized cast iron pipe fittings

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements

Delivery details

 According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
